AUTOStorit™ Automated Self-Storage Systems
AUTOStorit™
AUTOStorit is a fully automated, high-density, self-storage system. Each Storage Container is stationed on a pallet and stored in unoccupied rack storage. When requested by the owner the Storage Container is delivered to a Storage Bay. Instead of the user carting their possessions to storage space, the storage space is delivered to the user. Simple, Convenient, Secure.
It is NOT just Storage,
it is automated inventory
Benefits
DENSITY: Increases Storage Capacity
CONVENIENT: Every Storage Container is delivered to grade for efficient loading and unloading
SAFE: Only the Storage Bays (drop-off/pick-up area) available to user
SIMPLE: Pricing is universal since every container available at grade
INTEGRATION: Container tracking can be integrated into automated billing
FLEXIBLE: Pallet offerings of Stake, Cage, Commercial, Industrial
TIME SAVING: Containers can be scheduled for delivery
CUSTOMIZE: Containers can be subdivided to offer ¼ or ½ container options
VERSATILE: Containers can be fitted with electric connection, drainage, insulated walls/ceilings
SUSTAINABLE: Rack Structure is unconditioned space reduces carbon footprint
AUTOStorit™ ADAPTABILITY
Time passes, markets change and AUTOStorit is
built to adapt over time.
AUTOStorit’s modular and scalable system architecture extends deep into the life-cycle.

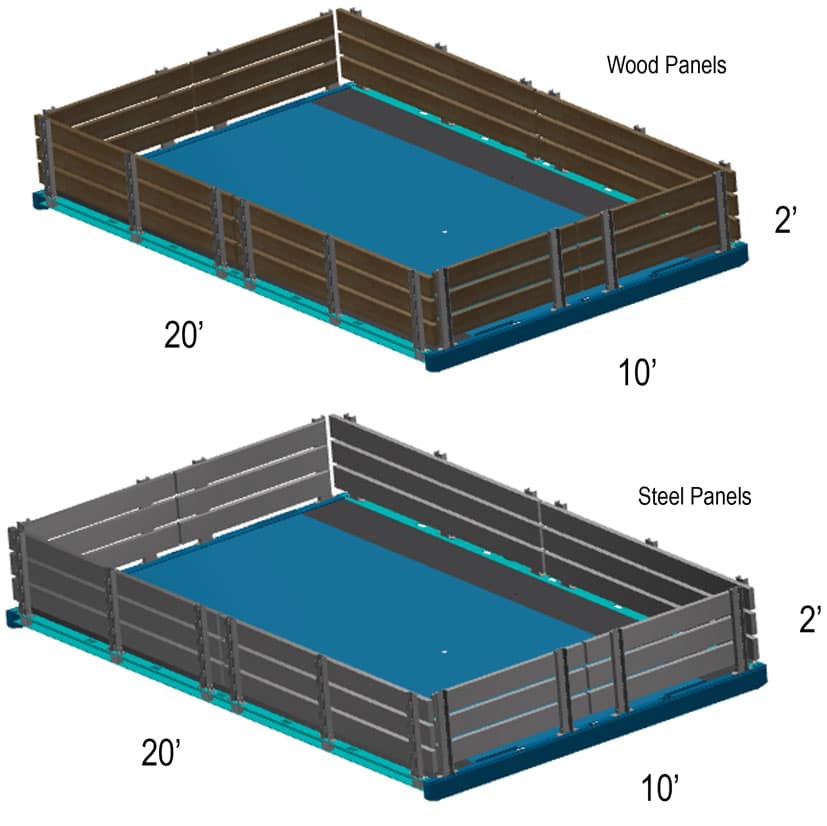

Stake Pallet
Stake Pallets are provided with wood or steel removable panels to allow for 360° access of the storage pallet.
Panel height is 24”.
Stake Pallets can be ordered, or a standard pallet retrofitted.
The entire contents of the Stake Pallet must weigh less than the maximum weight of a standard stall e.g 6,000 or 10,000 pounds

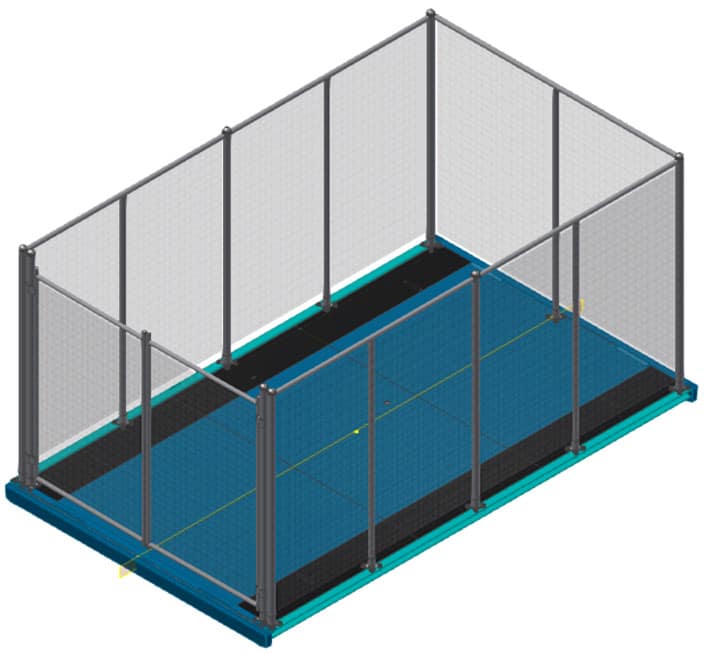

Cage Pallet
Cage Pallets are a cost-effective means for locked storage. The sturdy wire fencing eases hanging and allows contents to be inspected without being on-site.
Cage Pallets can be ordered, or a standard pallet retrofitted. Standard Cage height 4’, 6’, 8’.
The entire contents of the Cage Pallet must weigh less than the maximum weight of a standard stall e.g. 6,000 or 10,000 pounds
Cage Pallet Options:
- Fence roof
- Adjustable internal shelfing
- Additional Gate
- Custom Cage Heights

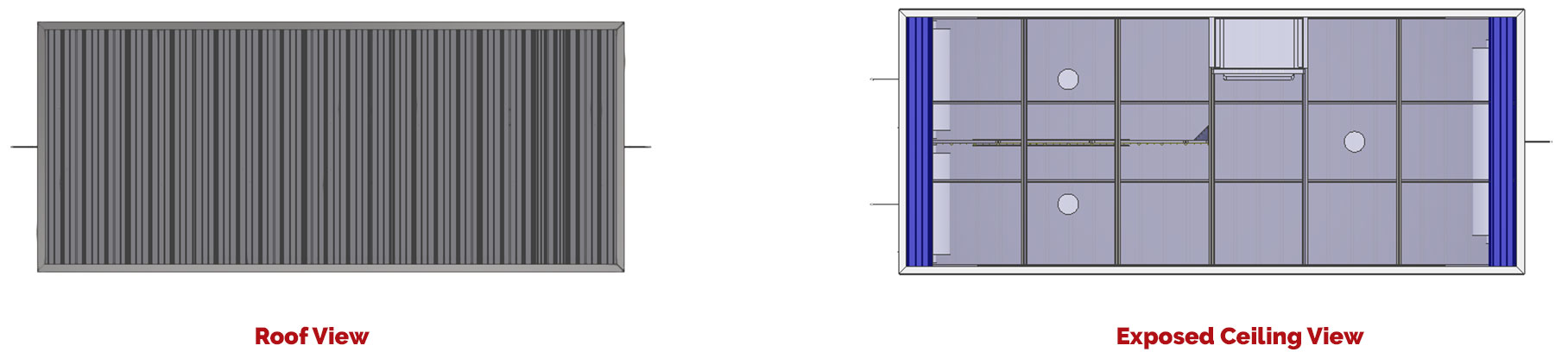

Commercial Grade Container Pallet

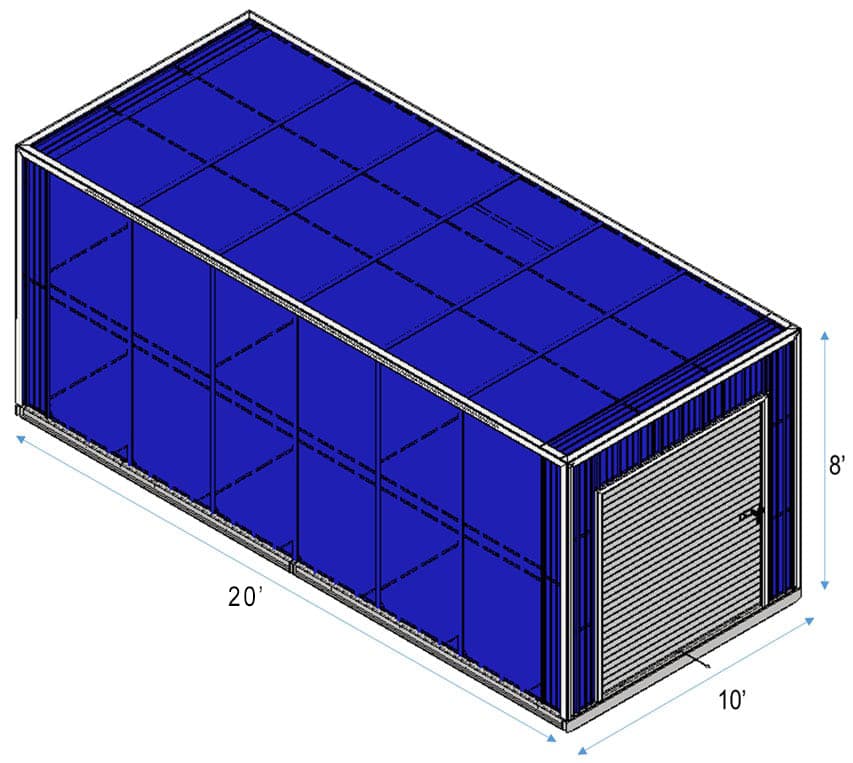

Commercial Grade Container Pallet
(20’ x 10’ x 8’) contains a single self-storage unit with overhead doors on each end.
Commercial Grade Container Pallet
provides a 10,000 pound content capacity.
Commercial Grade Container Pallet
can be further subdivided into multiple units identified
as ‘A’, ‘B’, ‘C’, or ‘D’.

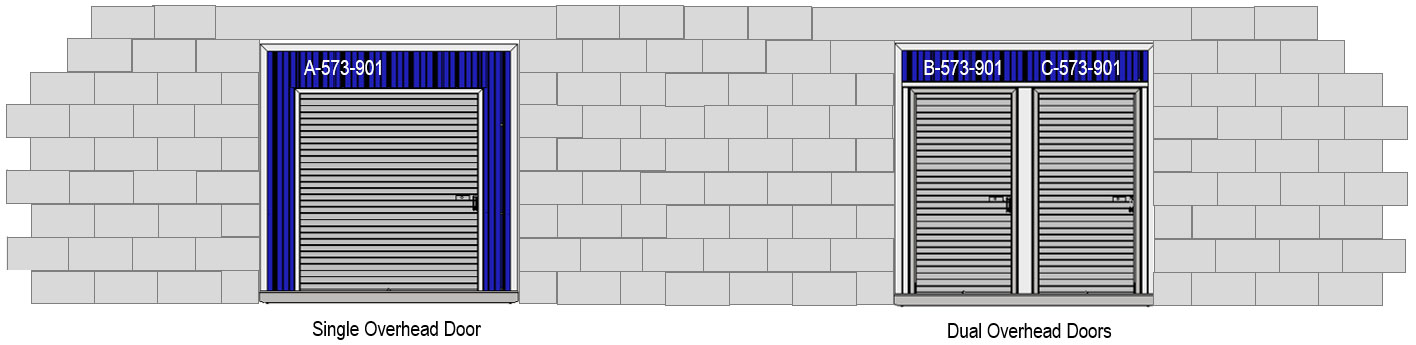

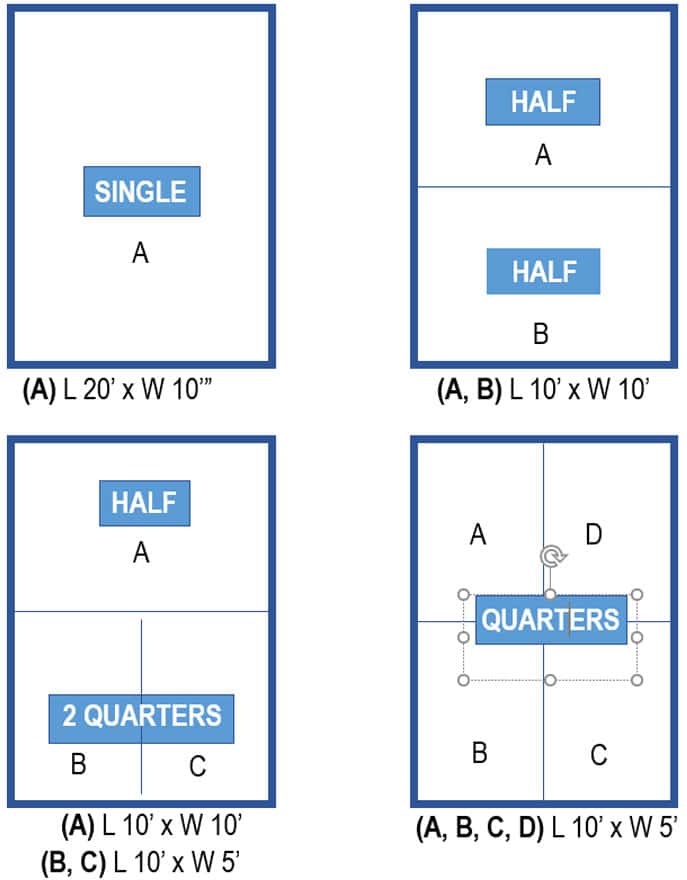

Commercial Container Layout Options

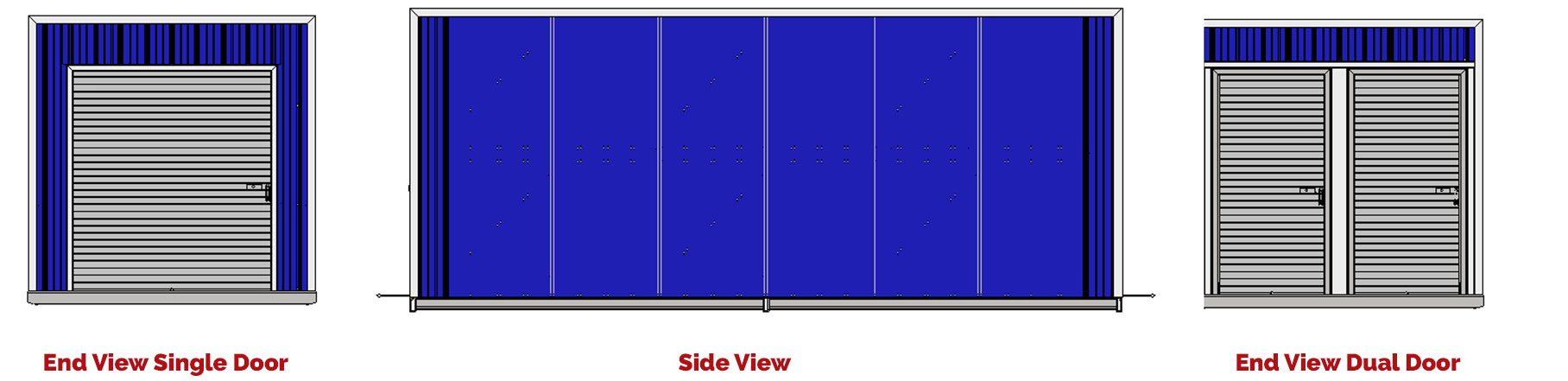

Commercial Grade Container Pallet
(20’ x 10’ x 8’) contains a single self-storage unit with
overhead doors on each end.
Commercial Grade Container Pallet
provides a 10,000 pound content capacity.
Commercial Grade Container Pallet
can be further subdivided into multiple units identified
as ‘A’, ‘B’, ‘C’, or ‘D’.

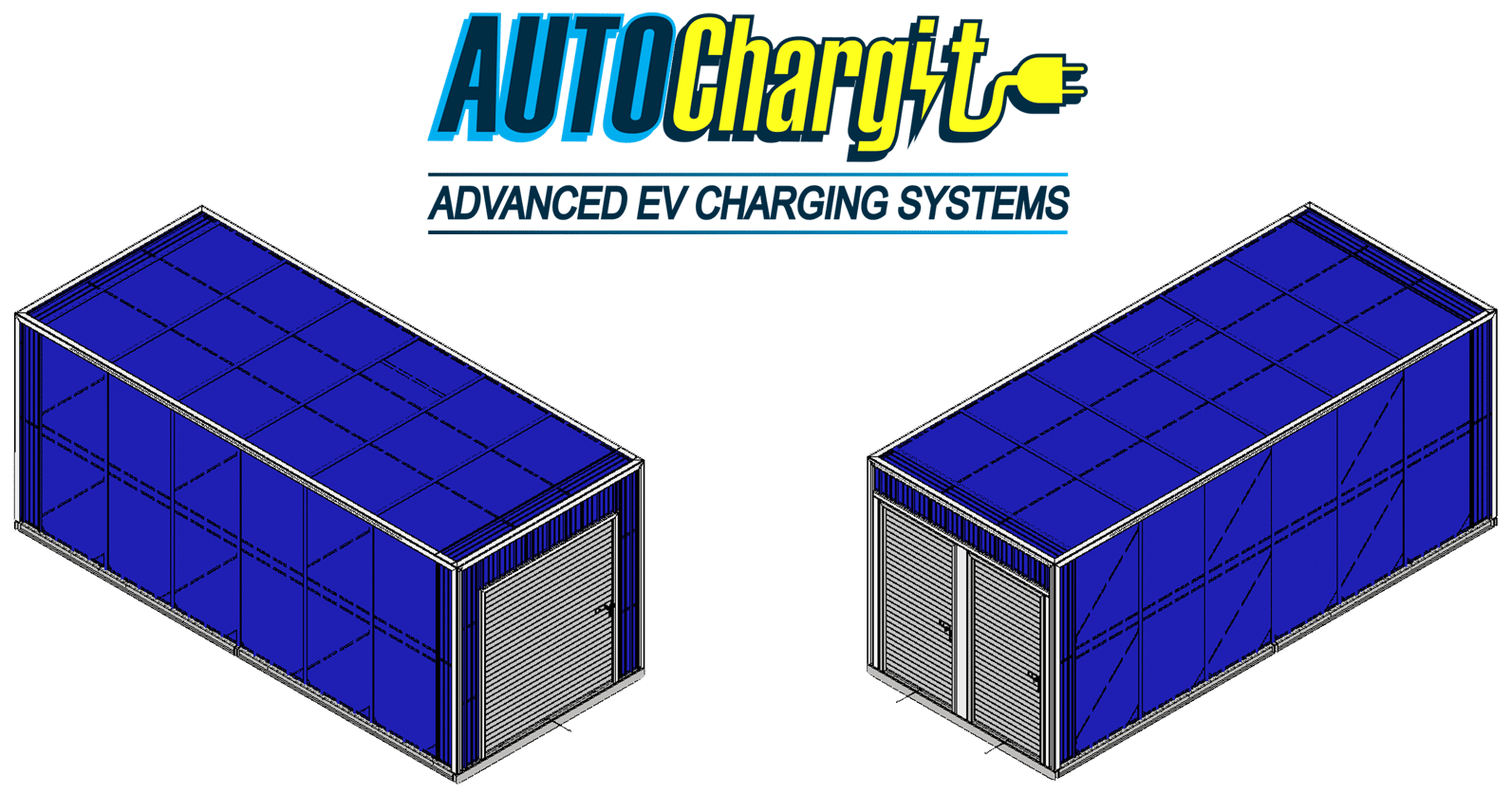

Commercial Container Electrical Option
Commercial Container Pallet can be fitted with AUTOChargit to provide 20 AMP of120 VAC or 10 AMPS 24 VDC
Commercial Container Temperature Options
Ambient Temperature Controlled Refrigerated Freezer

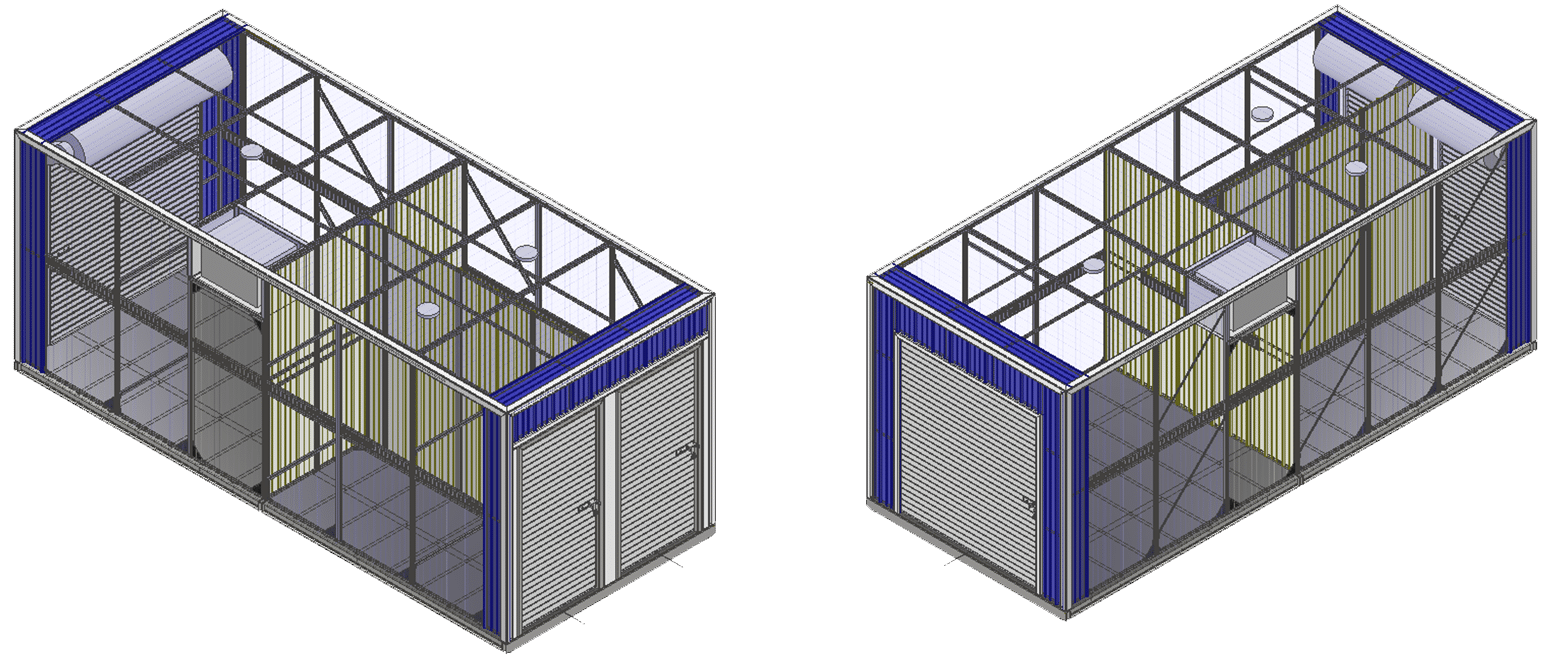

Storage Bay View with Storage Containers
Designed in Safety - user only has access to their container
Frequently Asked Questions
- What is AUTOStorit?
- AUTOStorit is a fully automated self-storage system designed and manufactured by Dasher Lawless. Using robotic retrieval, AUTOStorit stores and delivers units to a ground-level service bay without customers entering the storage area. Each storage slot can be subdivided into up to four individual compartments, dramatically increasing the number of rentable units per square foot.
- How does AUTOStorit increase storage density compared to conventional self-storage?
- Conventional self-storage requires wide drive aisles between rows of units for customer access. AUTOStorit eliminates all drive aisles because customers never enter the storage area — robotic retrieval handles all movement internally. The result is significantly more rentable units in the same building footprint.
- How do customers access their stored items with AUTOStorit?
- Customers check in at a ground-level service bay using a mobile app or kiosk. The AUTOStorit system retrieves their unit and delivers it to the bay within minutes. No elevators, stairwells, or aisle navigation required.
- What size items can AUTOStorit accommodate?
- AUTOStorit is designed for standard self-storage contents — furniture, boxes, equipment, and personal property. Unit configurations and size ranges are customized per facility during the design phase.
- Is AUTOStorit more secure than conventional self-storage?
- Yes. Because customers never enter the storage area, AUTOStorit eliminates unauthorized access, aisle wandering, and unit-to-unit theft. Access is fully logged through the check-in system, and the storage field is mechanically inaccessible to anyone without system authorization.
- What types of developers and operators is AUTOStorit designed for?
- AUTOStorit is designed for self-storage developers and operators who want to maximize revenue per square foot, reduce operating labor, and differentiate with a premium, technology-driven customer experience. It is particularly well-suited to urban infill sites where land cost is high.
- Who designs, manufactures, and installs AUTOStorit?
- Dasher Lawless designs, engineers, manufactures, and installs AUTOStorit in-house from its 300,000 sq. ft. facility in Warren, Ohio. The company provides a complete turn-key solution from initial design through commissioning.
- Can AUTOStorit integrate with AUTOChargit EV charging?
- Yes. Like all Dasher Lawless automation systems, AUTOStorit is designed for integration with other product lines. AUTOChargit EV charging can be incorporated into mixed-use structures that include AUTOStorit automated storage.
