AUTOStorit™

It is NOT just Storage,
it is automated inventory

Benefits

DENSITY: Increases Storage Capacity

CONVENIENT: Every Storage Container is delivered to grade for efficient loading and unloading

SAFE: Only the Storage Bays (drop-off/pick-up area) available to user

SIMPLE: Pricing is universal since every container available at grade

INTEGRATION: Container tracking can be integrated into automated billing

FLEXIBLE: Pallet offerings of Stake, Cage, Commercial, Industrial

TIME SAVING: Containers can be scheduled for delivery

CUSTOMIZE: Containers can be subdivided to offer ¼ or ½ container options

VERSATILE: Containers can be fitted with electric connection, drainage, insulated walls/ceilings

SUSTAINABLE: Rack Structure is unconditioned space reduces carbon footprint

AUTOStorit™ ADAPTABILITY

Time passes, markets change and AUTOStorit is
built to adapt over time.

AUTOStorit’s modular and scalable system architecture extends deep into the life-cycle.

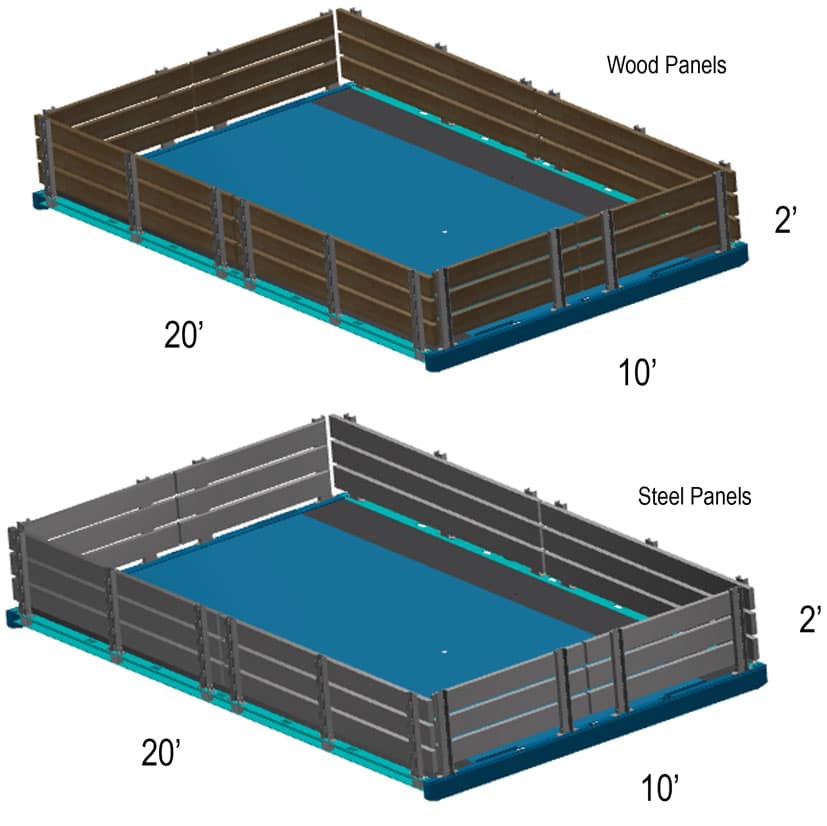

Stake Pallet

Stake Pallets are provided with wood or steel removable panels to allow for 360° access of the storage pallet.

Panel height is 24”.

Stake Pallets can be ordered, or a standard pallet retrofitted.

The entire contents of the Stake Pallet must weigh less than the maximum weight of a standard stall e.g 6,000 or 10,000 pounds

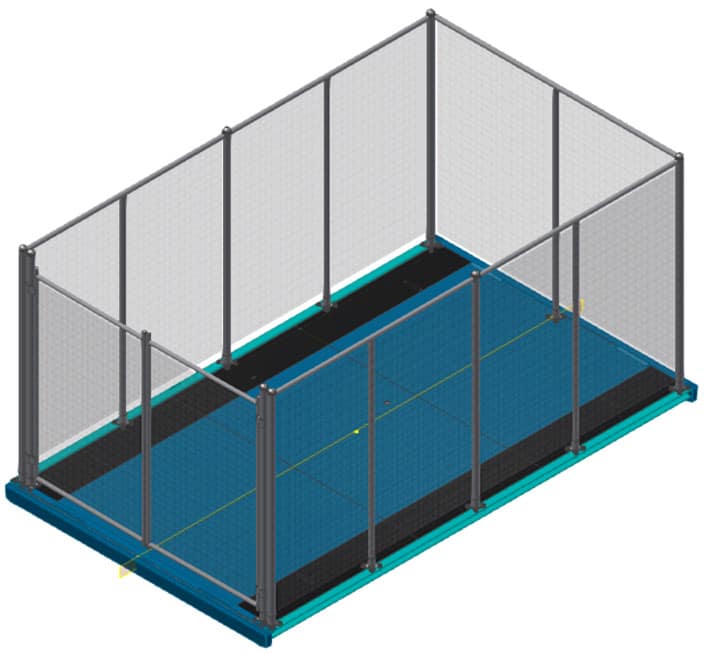

Cage Pallet

Cage Pallets are a cost-effective means for locked storage. The sturdy wire fencing eases hanging and allows contents to be inspected without being on-site.

Cage Pallets can be ordered, or a standard pallet retrofitted. Standard Cage height 4’, 6’, 8’.

The entire contents of the Cage Pallet must weigh less than the maximum weight of a standard stall e.g. 6,000 or 10,000 pounds

Cage Pallet Options:

  1. Fence roof
  2. Adjustable internal shelfing
  3. Additional Gate
  4. Custom Cage Heights

Commercial Grade Container Pallet

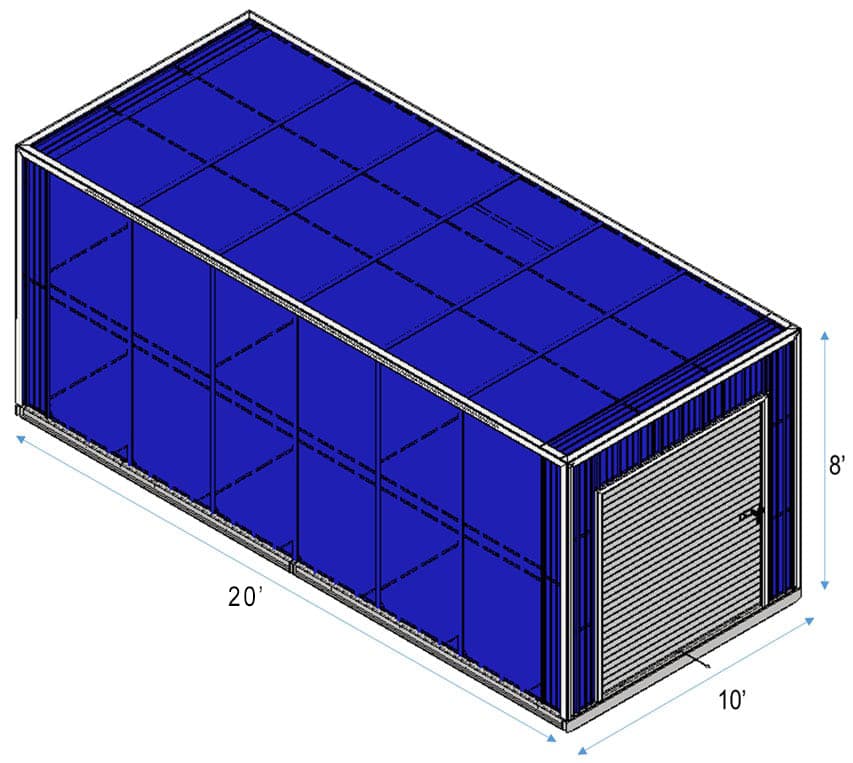

Commercial Grade Container Pallet

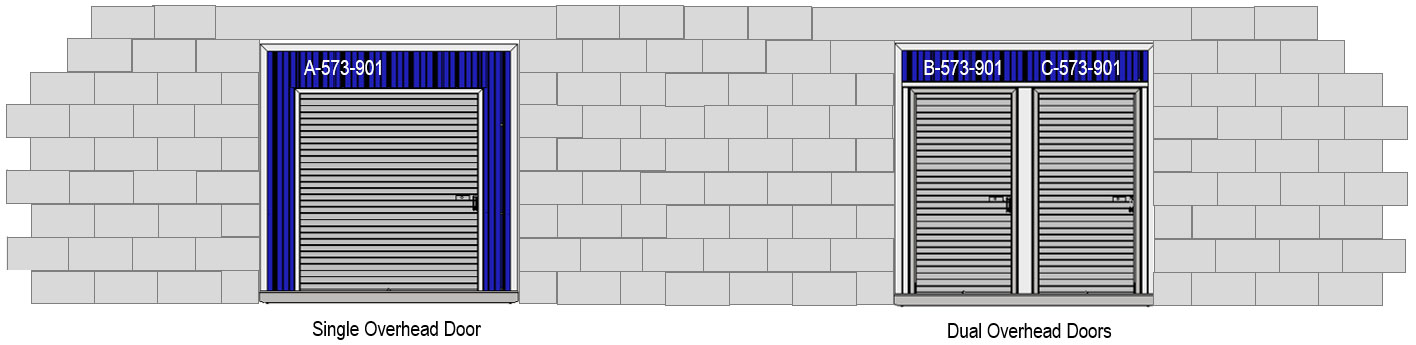

(20’ x 10’ x 8’) contains a single self-storage unit with overhead doors on each end.

Commercial Grade Container Pallet
provides a 10,000 pound content capacity.

Commercial Grade Container Pallet
can be further subdivided into multiple units identified
as ‘A’, ‘B’, ‘C’, or ‘D’.

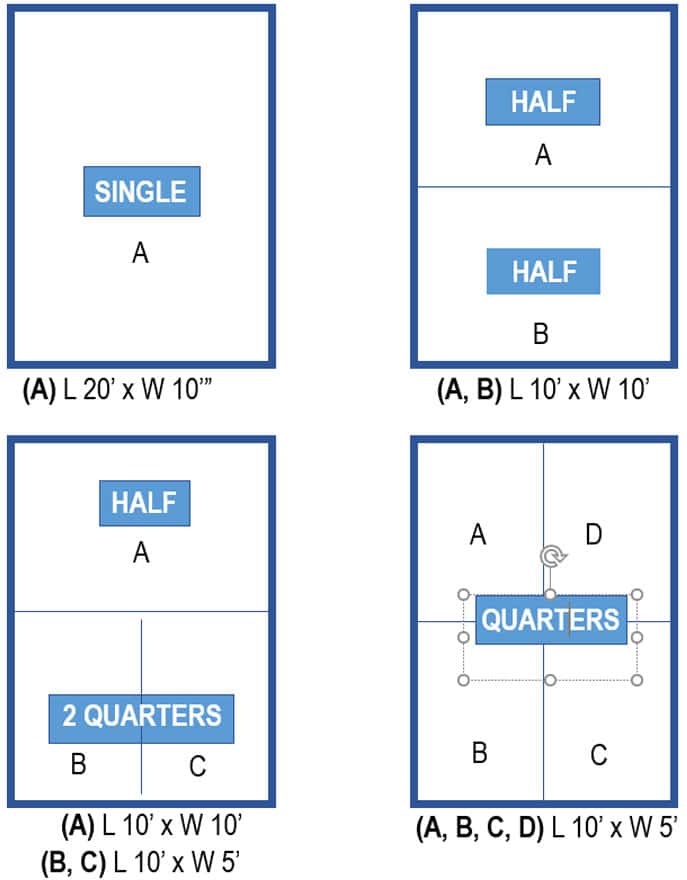

Commercial Container Layout Options

Commercial Grade Container Pallet
(20’ x 10’ x 8’) contains a single self-storage unit with
overhead doors on each end.

Commercial Grade Container Pallet
provides a 10,000 pound content capacity.

Commercial Grade Container Pallet
can be further subdivided into multiple units identified
as ‘A’, ‘B’, ‘C’, or ‘D’.

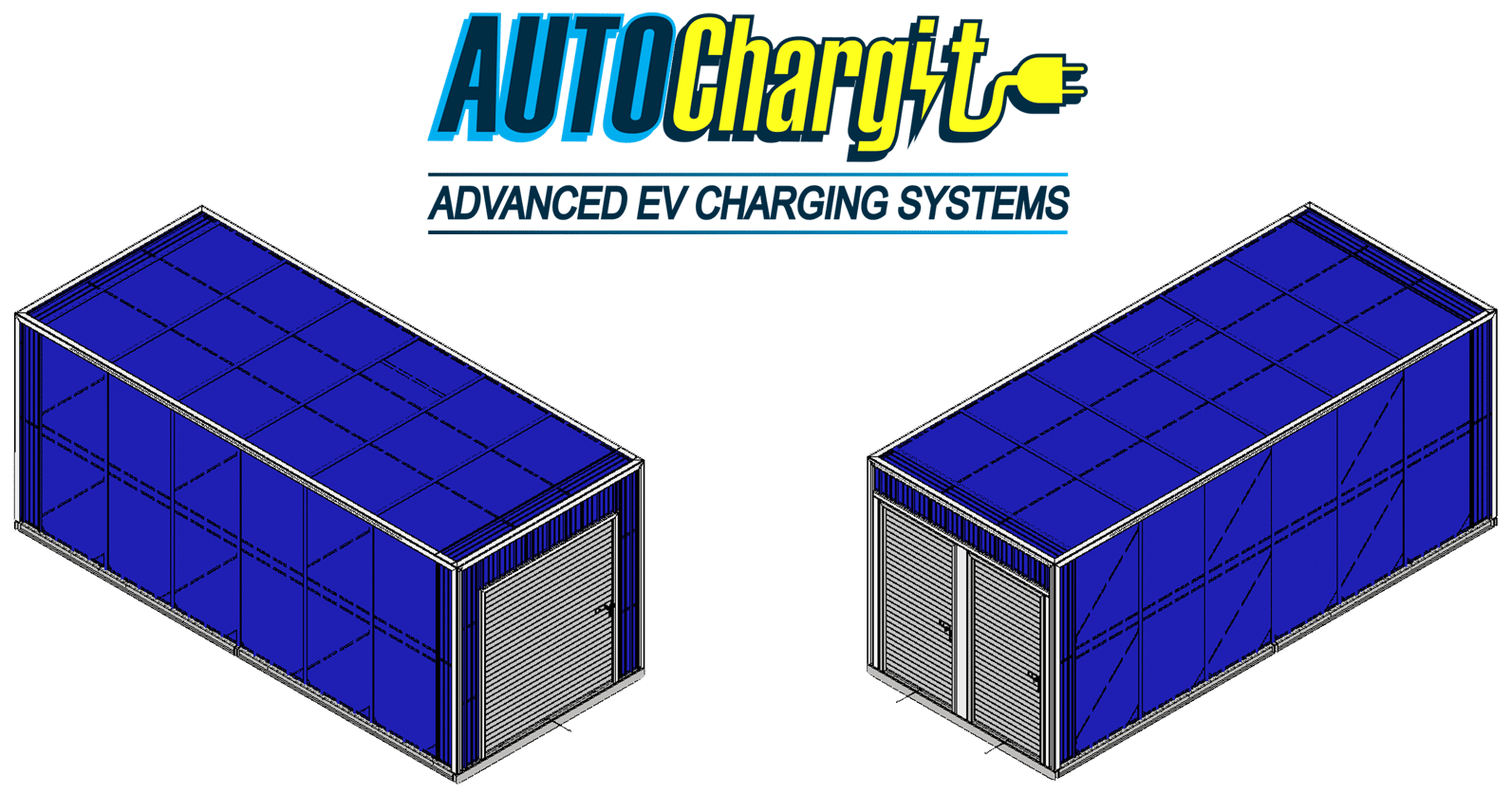

Commercial Container Electrical Option

Commercial Container Pallet can be fitted with AUTOChargit to provide 20 AMP of120 VAC or 10 AMPS 24 VDC

Commercial Container Temperature Options

Ambient
Temperature Controlled
Refrigerated
Freezer

Storage Bay View with Storage Containers

Designed in Safety - user only has access to their container
